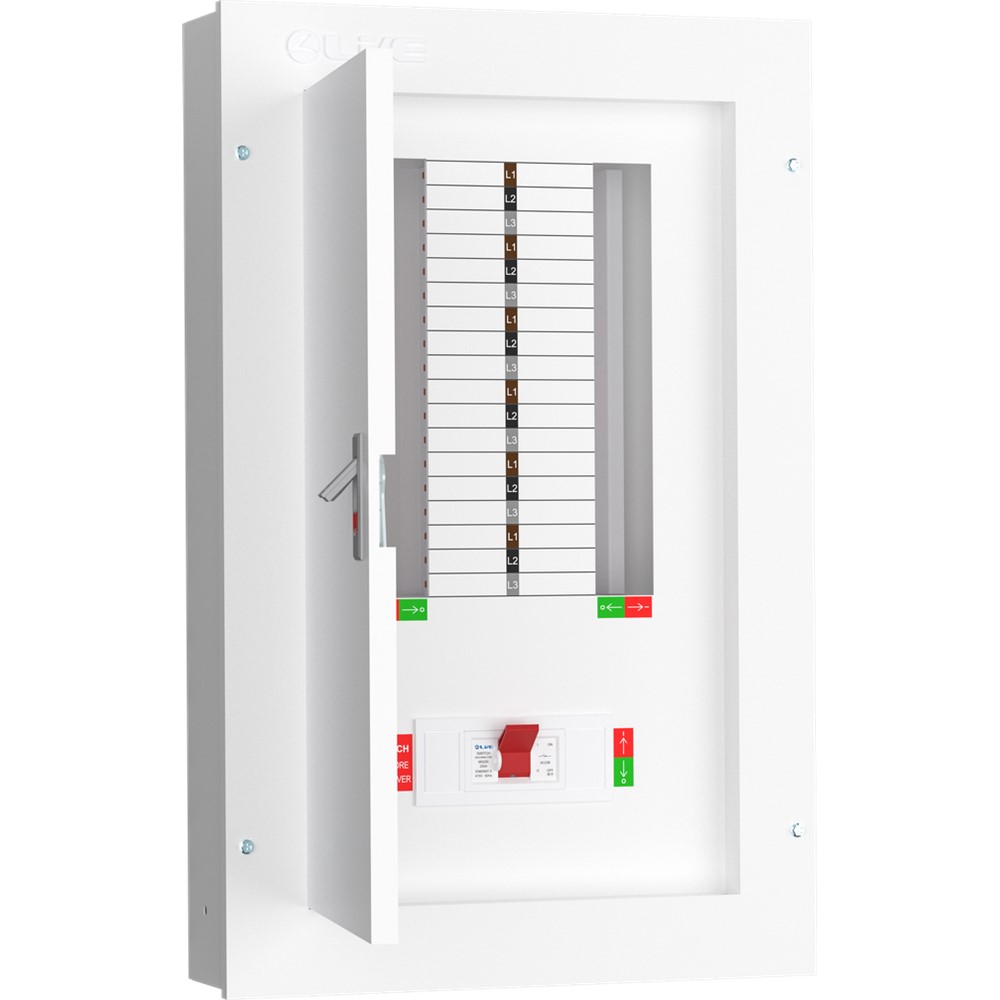

The Live Electrical TPN12-250 is a 12-way triple pole and neutral (TP&N) distribution board designed for three-phase commercial and industrial electrical installations.
It features a 250A main switch incomer and is built for efficient circuit management in high-capacity environments.
Key Specifications
Amperage: 250A main incomer switch.
Configuration: 12 usable three-phase ways (36 single-pole ways).
Dimensions: Height of 722mm, width of 456mm, and a depth of 120mm.
Safety & Standards: Built to BS EN61439-3 standards, featuring a fully enclosed busbar and complete shrouding for the main incomer.
Construction: Metal enclosure with removable top and bottom gland plates for easier cable entry.
Features: Includes a door lock as standard and is compatible with surge protection devices (SPD).
| Surge Protection Included | No |
| Pole Configuration | TP |
| Outgoing Ways | 12 Way |
| Incomer Included | Y |
| Incomer Current Rating | 250 A |
| Brand | Liveelec |
