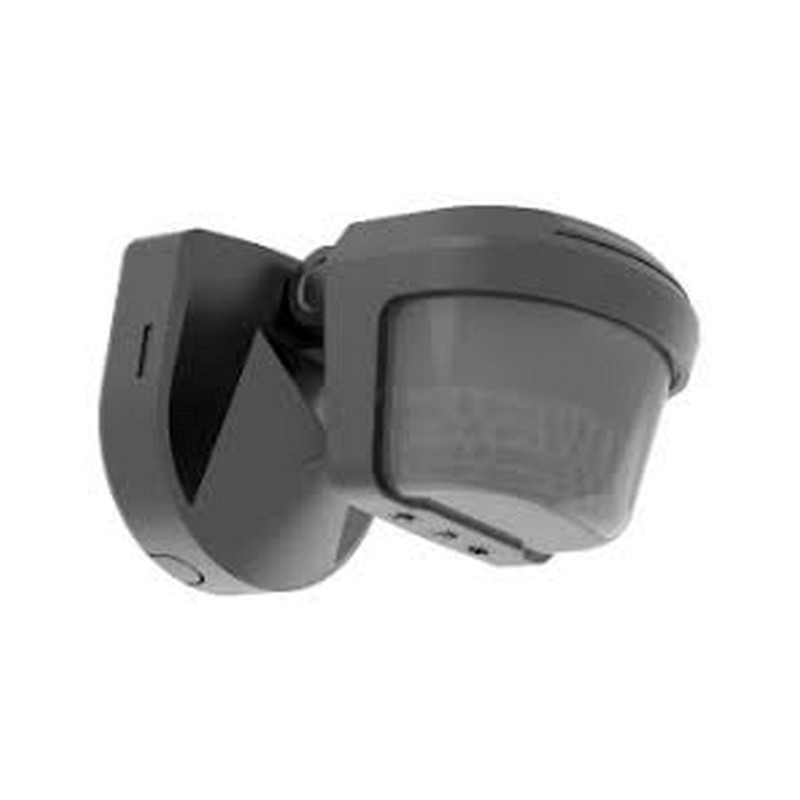

Timeguard SLB2301 PIR 2kW Standalone Black – 180° Outdoor Sensor
Outdoor standalone PIR motion sensor with integrated photocell for automatic lighting control
Detection Angle: 180° wide coverage for enhanced area monitoring
Detection Range: Adjustable up to approx. 12 m (dependent on installation height and conditions)
Load Capacity: Up to 2,000 W resistive / 500 W inductive (suitable for most outdoor lighting loads)
Photocell Sensitivity: Adjustable light level setting from dusk to daylight for customised activation
Time Delay Adjustment: User-selectable from approx. 5 seconds to 18 minutes
Construction Material: Weatherproof, UV-stabilised polycarbonate housing
Colour Finish: Black
Ingress Protection Rating: IP65
Mounting Type: Wall-mounted design with adjustable sensor head for optimal coverage
Power Supply: 230 V AC, 50 Hz mains operation
Operating Temperature Range: –20 °C to +40 °C
Cable Entry: Rear or bottom entry with rubber grommet for sealed installation
Applications: Suitable for security lighting and energy-saving control in gardens, driveways, and building exteriors
Warranty: 3-year manufacturer’s guarantee
