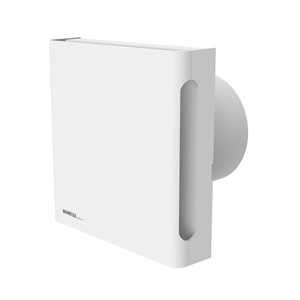

The Manrose Quiet Fan X5 Conceal (QF100HTX5CON) is a 100mm (4") axial bathroom extractor fan designed for ultra-quiet operation and high energy efficiency.
It features a sleek, flat-fronted white fascia and is specifically rated for use in Zone 1 of bathrooms and shower rooms.
Key Features & Performance
Dual Control: Equipped with both an adjustable humidistat (40%–90% RH) and an adjustable overrun timer (5–30 minutes).
Ultra-Quiet: Operates at a low noise level of 28dB(A) at 3 metres, making it one of the quieter options for residential use.
Energy Efficient: Consumes a maximum of only 6 Watts, helping to keep long-term running costs low.
Extraction Power: Provides a robust extraction rate of 75m³/hr (21 litres per second).
Flexible Installation: Suitable for both wall and ceiling mounting. It includes an integrated backdraft shutter to prevent cold air from entering the room when the fan is off.
Technical Specifications
Model Number QF100HTX5CON
IP Rating IPX5 (Zone 1 Compliant)
Dimensions 160mm (H) x 160mm (W) x 40mm (Fascia Depth)
Spigot Diameter 100mm (4")
Motor Life Guaranteed for 30,000 hours or 3 years
Power Supply 220-240V ~ 50Hz AC Single Phase
| Mounting | Wall or Ceiling |
| Size | 100 mm |
| Brand | Manrose |
