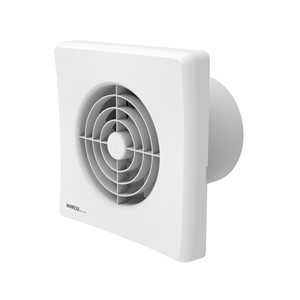

The Manrose QF100TX5 (often designated as the Quiet Fan X5) is a 100mm (4-inch) axial bathroom extractor fan designed for quiet, energy-efficient operation.
It features an integrated adjustable timer and is highly rated for use in demanding bathroom environments.
Core Specifications
Performance: Delivers an extraction rate of 75 m³/hr(21 litres per second).
Noise Level: Operates at a quiet 27–28 dB(A) at 3 metres, which is approximately 60% quieter than standard domestic fans.
Power Efficiency: Uses a low-energy motor consuming only 6–7 Watts.
Timer Control: Features an adjustable overrun timer that can be set between 5 and 30 minutes after the light switch is turned off.
Durability: Rated IPX5, making it suitable for safe installation in Zone 1 or Zone 2 of a bathroom (where it may be subject to water spray).
Design and Installation
Mounting: Suitable for both wall and ceiling mounting.
Dimensions: The unit measures approximately 160mm x 160mm with a depth of 38-40mm beyond the surface and a 99mm diameter spigot for 100mm ducting.
Construction: Made from high-gloss ABS thermoplastics for durability.
Backdraught Protection: Includes an integral backdraught shutter to prevent cold air from entering the room when the fan is off.
Electrical: Operates on 220-240V AC and is double insulated (Class II), so it does not require an earth connection.
..
| Mounting | Wall or Ceiling |
| Size | 100 mm |
| Brand | Manrose |
