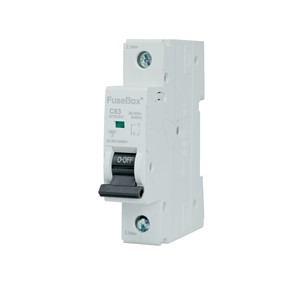

The FuseBox MT06C631 is a 63A, 6kA Single Pole (SP) Type C Miniature Circuit Breaker (MCB) with a 1-module (18mm) width, designed for overcurrent and short-circuit protection in FuseBox consumer units. It is compliant with BS EN 60898-1, features a C-curve tripping characteristic, and fits on 35mm DIN rails.
Key Features and Specifications:
Current Rating: 63A
Breaking Capacity: 6kA
Curve Type: C (trips at 5-10 times the rated current)
Poles: 1 (Single Pole)
Module Width: 1 (18mm)
Mounting: 35mm DIN rail
Terminal Capacity: 16mm²
Rating: IP20
Compliance: BS EN 60898-1
Applications:
The MT06C631 is suitable for residential, commercial, and industrial applications requiring protection against moderate to high surge currents. It is a component of the 18th Edition FuseBox range.
| Type | MCB |
| Trip Type | Type C |
| Short Circuit Rating | 6 kA |
| Pole Configuration | SP |
| Current Rating | 63 A |
| Brand | Fusebox |
