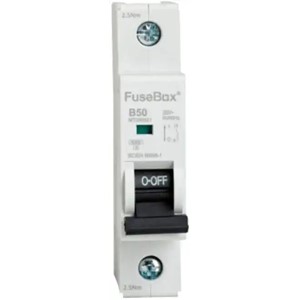

The FuseBox MT06B501 is a 50 Amp, single-pole, Type B miniature circuit breaker (MCB) designed for use in FuseBox consumer units. It provides essential protection against overloads and short circuits in residential and commercial electrical installations.
Key Specifications
Current Rating: 50A.
Breaking Capacity: 6kA (6000A).
Tripping Curve: Type B, designed for moderate inrush currents.
Terminal Capacity: 16mm² for both incoming and outgoing connections.
Voltage & Frequency: 230V, 50/60Hz.
Mounting: Standard 35mm DIN rail.
Compliance: 18th Edition and BS EN 60898-1 compliant.
Dimensions: 83mm (H) x 17.6mm (W) x 69.6mm (D).
| Type | MCB |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Pole Configuration | SP |
| Current Rating | 50 A |
| Brand | Fusebox |
