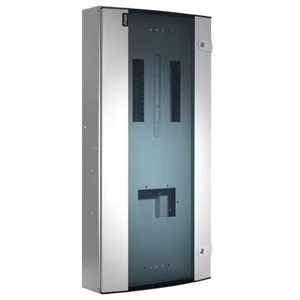

The Hager JK224BG is a 24-way, triple pole and neutral (TPN) distribution board from the Invicta 3 range of Type B products.
It is a 250A-rated, surface-mounted steel enclosure featuring a glazed door, specifically designed for high-aesthetic environments like public areas, commercial offices, or industrial sites.
Key Specifications
Capacity: 18-way TPN configuration with a 250A incoming and 63A outgoing rating.
Dimensions: 1400mm (H) x 465mm (W) x 165.5mm (D).
Ingress Protection: Rated at IP3X (or IP3XD) for protection against solid objects.
Material: Built with a durable, fire-resistant mild steel body and a glazed cabinet door.
Standard Compliance: Conforms to BS EN 61439-3 (and 18th Edition Wiring Regulations).
Safety Features: Includes a quarter-turn key lock, a fully shrouded copper busbar, and integrated earth/neutral terminal blocks.
Incomer Kit Required: The board is supplied without incoming or outgoing devices.
You must purchase a separate Hager incoming kit (e.g., JK22503M or JK22504M) to complete the installation.
Mounting: It is intended for surface/wall mounting and is not suitable for outdoor use.
| Brand | Hager |
| Pole Configuration | TP |
| Surge Protection Included | No |
| Outgoing Ways | 18 Way |
| Incomer Current Rating | 250 A |
| Incomer Included | No |
