The Hager JK116BG is a high-capacity 125A Type B Triple Pole and Neutral (TPN) distribution board from the Invicta 3 range. It features 16 outgoing ways and a distinct glazed door, making it suitable for commercial and industrial environments where visual inspection is required.
Key Specifications
Capacity: 125A rated busbar with 16 triple-pole ways (totaling 48 modules).
Enclosure: Surface-mounted steel in RAL 7035 light grey with an IP3X/IP3XD protection rating.
Dimensions: 950mm (H) x 465mm (W) x 132.5mm (D).

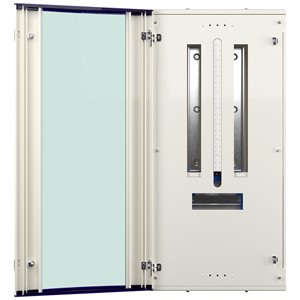

Door: Smoked glazed finish with a quarter-turn key lock for security.
Compliance: Fully conforms to BS EN 61439-3 standards.

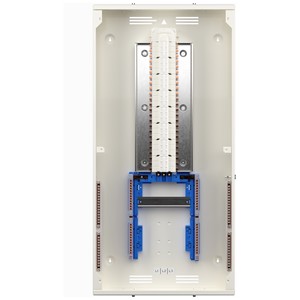

The board is supplied empty and requires a separate incomer kit (such as the JK11253S 125A Switch Disconnector) and outgoing devices (MCBs or RCBOs).
| Brand | Hager |
| Incomer Included | No |
| Surge Protection Included | No |
| Outgoing Ways | 16 Way |
| Pole Configuration | TP |
| Incomer Current Rating | 125 A |
