The BN Thermic HN3-30 is a 3kW quartz halogen infrared heater designed for high-efficiency spot heating in large or intermittently used spaces such as workshops, community halls, and churches.
It heats people and objects directly via shortwave infrared energy, rather than warming the surrounding air, making it instantly effective upon switching on.
Standard black finish with a gold-filtered lamp that produces a soft pink/red glow.
Core Specifications
Power Output: 3.0kW (two 1.5kW lamps).

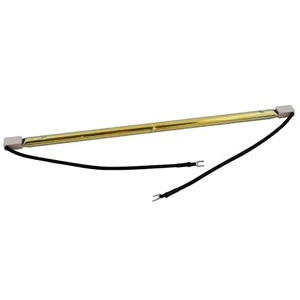

Lamp Life: Approximately 7,000 hours; lamps are replaceable.
Mounting: Comes with a steel wall bracket allowing for "up and down" and "side to side" adjustment. It can also be suspended using an optional suspension kit (HSK).
Safety & Protection: IP22 or IP20 rated and includes a built-in safety protective guard.
Dimensions: Standard HN3-30 units are approximately 376mm (H) x 375mm (W) x 100mm (D).
Usage & Installation
Applications: Ideal for "target" heating in unheated buildings like warehouses, loading bays, and animal pens.
Electrical: Pre-wired with a 1m high-temperature 3-core silicone cable. It is recommended to use a Type C MCB or RCBO due to high inrush currents at startup.

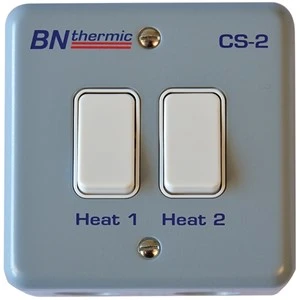

Control: Can be used with remote-mounted switches or energy-saving controls like the TS-7 run-down timer or PIR detectors to minimize running costs.
| Wattage | 3 KW |
| Colour | Black |
| Brand | BN Thermic |
