BG EVLS7MSG-01
EV Charger 7.4kW Slv (EVLS7MSG-01)

The BG Sync Energy EVLS7MSG-01 (part of the Link series) is a 7.4kW single-phase smart EV charger designed for residential and commercial use.

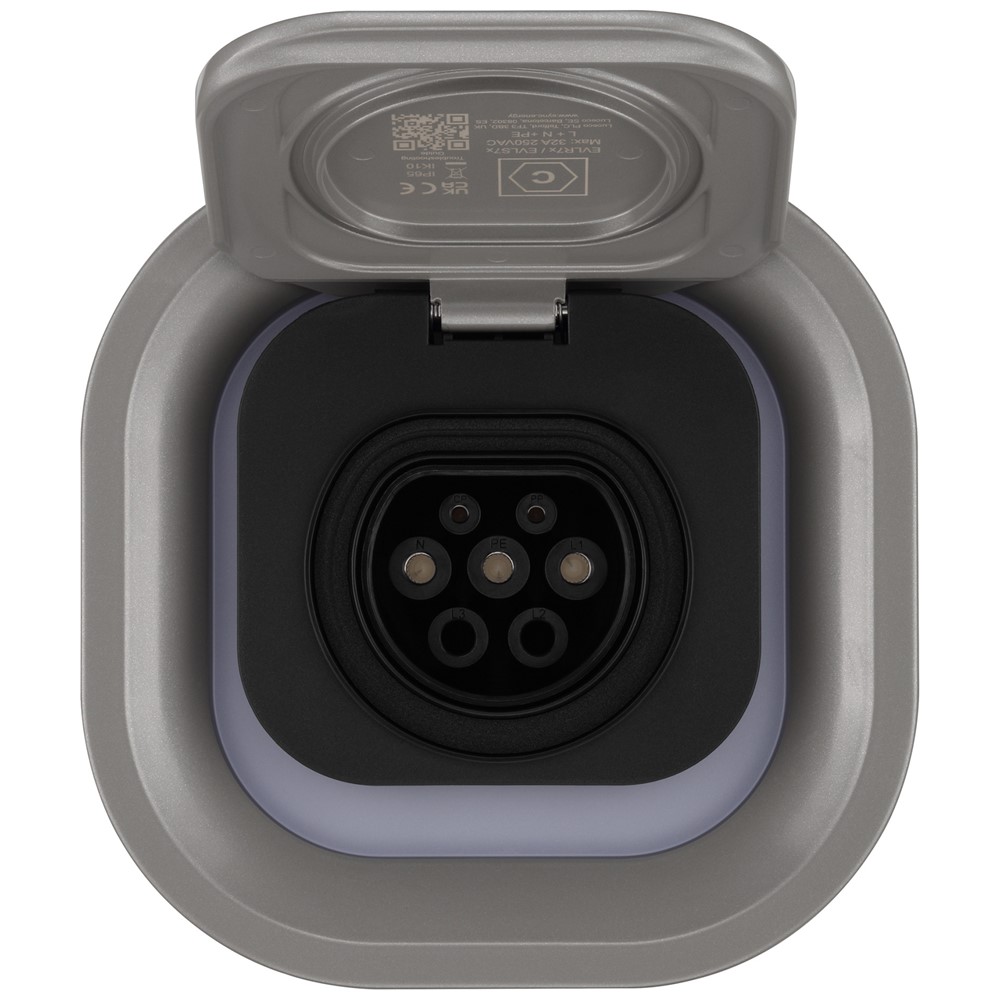

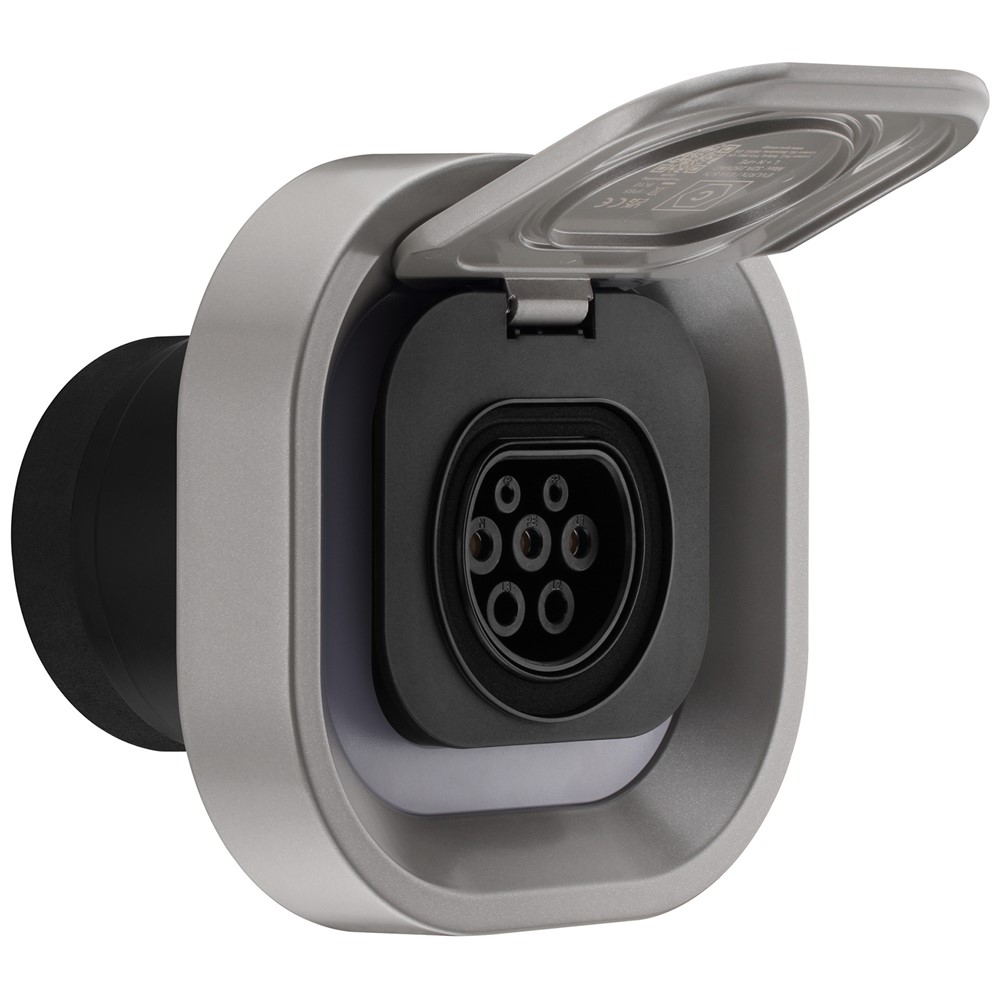

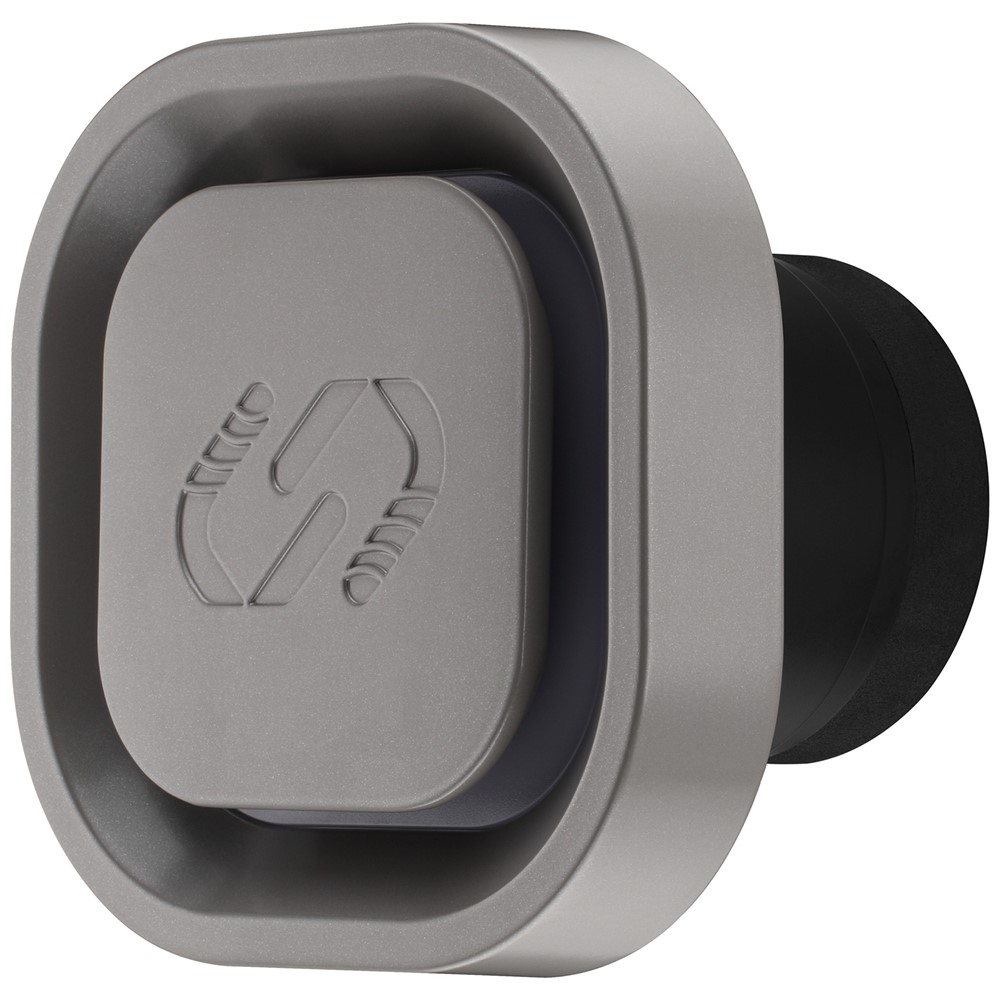

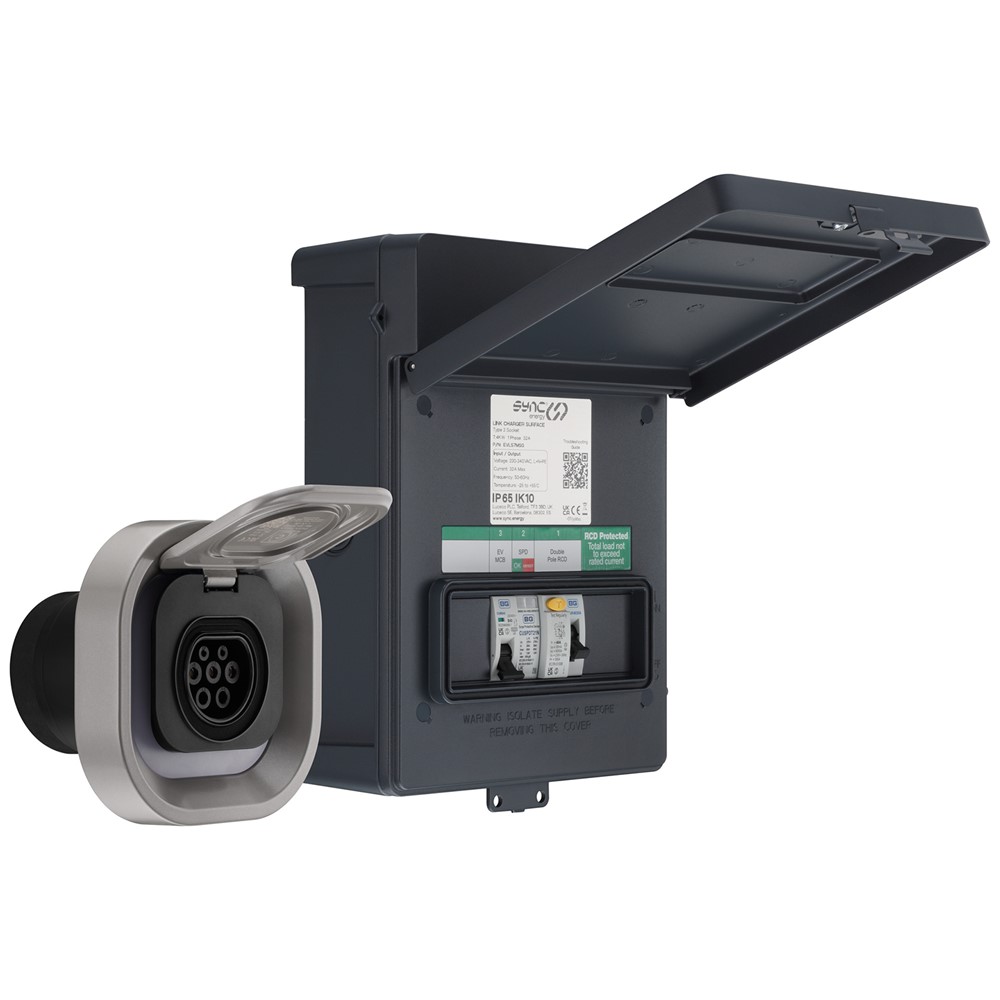

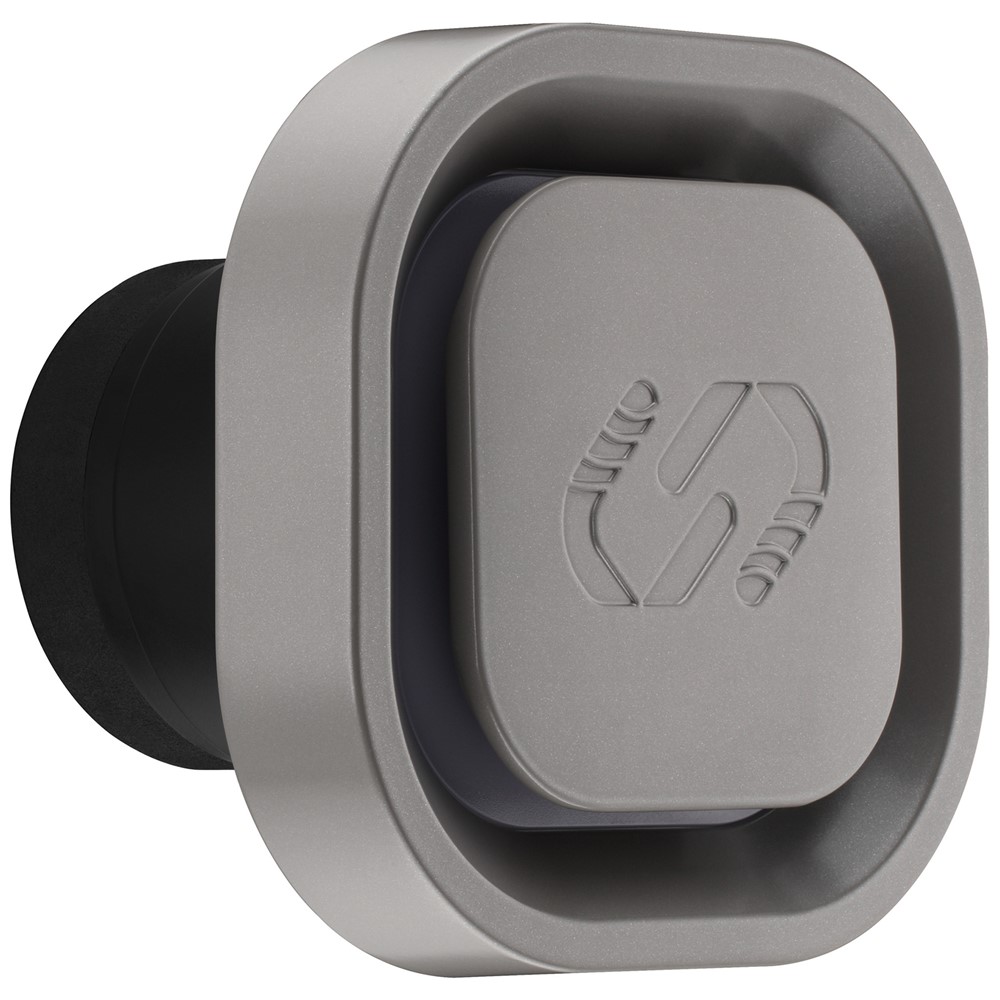

It features a slimline, surface-mounted design with a Type 2 socket and includes a separate metal control box for integrated safety and easier installation.

Core Specifications
Power Output: Up to 7.4kW (32A), configurable from 6A to 32A.
Connectivity: Supports Wi-Fi (2.4GHz), LAN (Ethernet), and 4G for areas with poor signal.
Safety Features: Built-in Type A RCD (30mA AC / 6mA DC leakage protection), Type 2 Surge Protection Device (SPD), and a 40A B Curve MCB.
Durability: IP65 weatherproof and IK10 impact ratings, with a die-cast aluminium housing.
Dimensions:
Charger Unit: 176mm (H) x 176mm (W) x 122mm (D).
Control Box: 316mm (H) x 231mm (W) x 100mm (D).

Smart Features
App Control: Managed via the Sync Energy app, allowing for remote scheduling and real-time usage monitoring.
Solar Compatibility: Includes an Auto Solar Charging feature to use excess solar power for charging.
Tariff Management: Features Tariff Sense to sync with UK energy tariffs for cost-optimised charging.
Load Balancing: Dynamic load management is supported with an included CT clamp to prevent overloading the property's main supply.

Installation Highlights
Pre-Wired: The metal control box comes pre-wired to save time on-site.
Mounting: Designed for surface mounting with no specialist tools required.
OCPP 1.6J: Fully compatible for integration with various back-office systems.
