BG EVLR7MS-01
EV Charger 7.4kW Slv (EVLR7MS-01)

The BG Sync Energy Link EVLR7MS-01 is a 7.4kW (32A) Mode 3 smart EV charger designed for a minimalist, recessed installation.

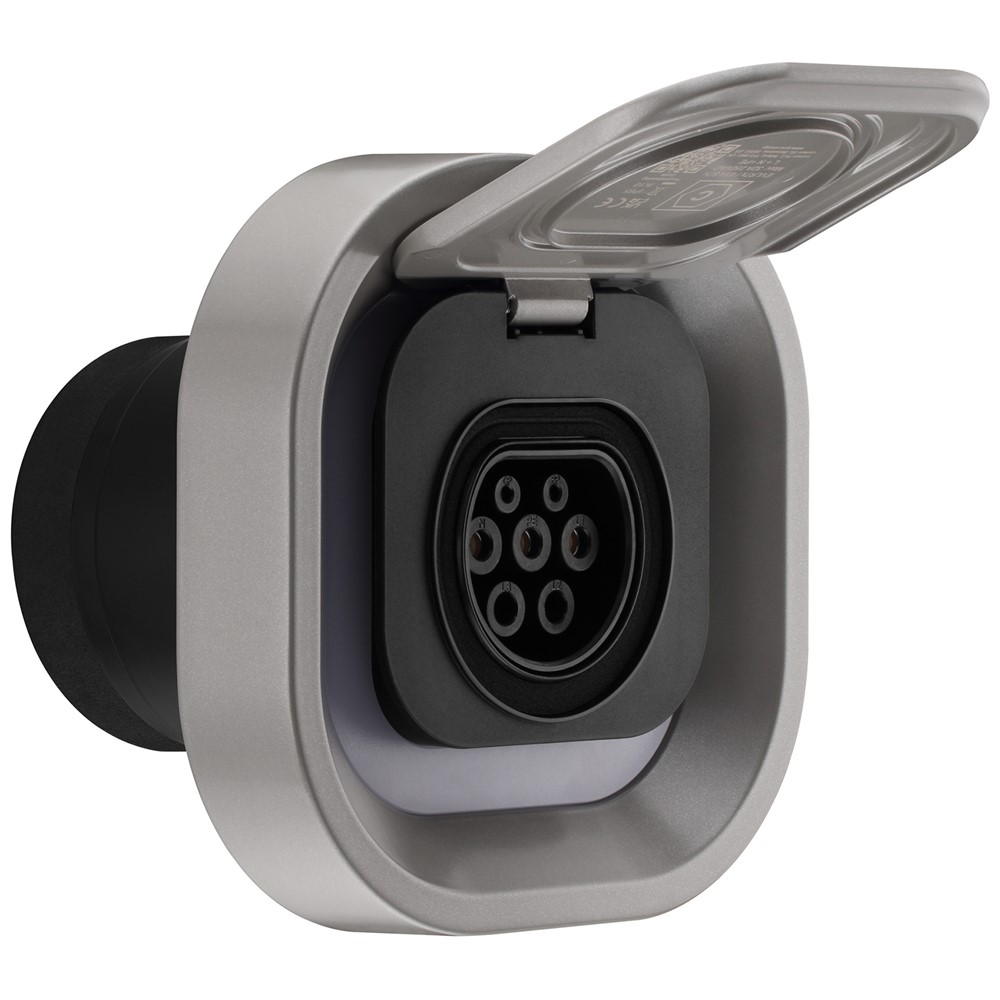

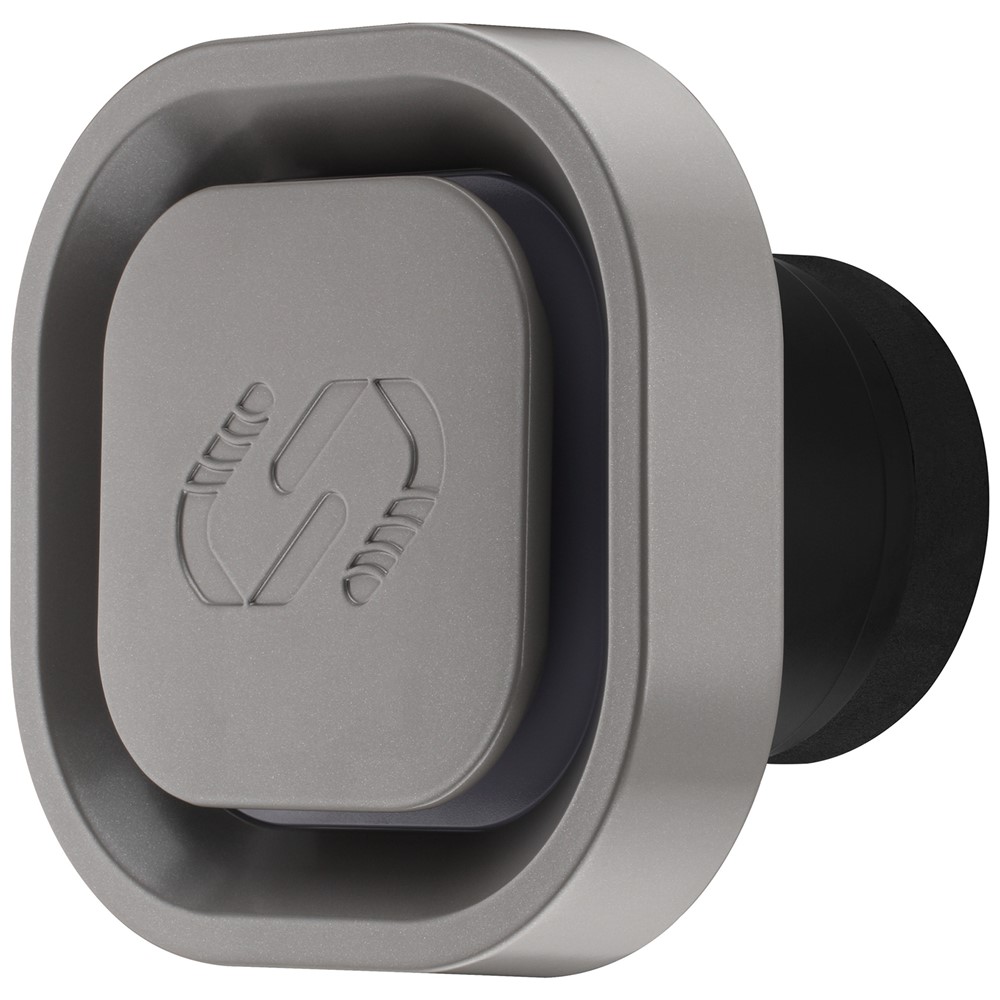

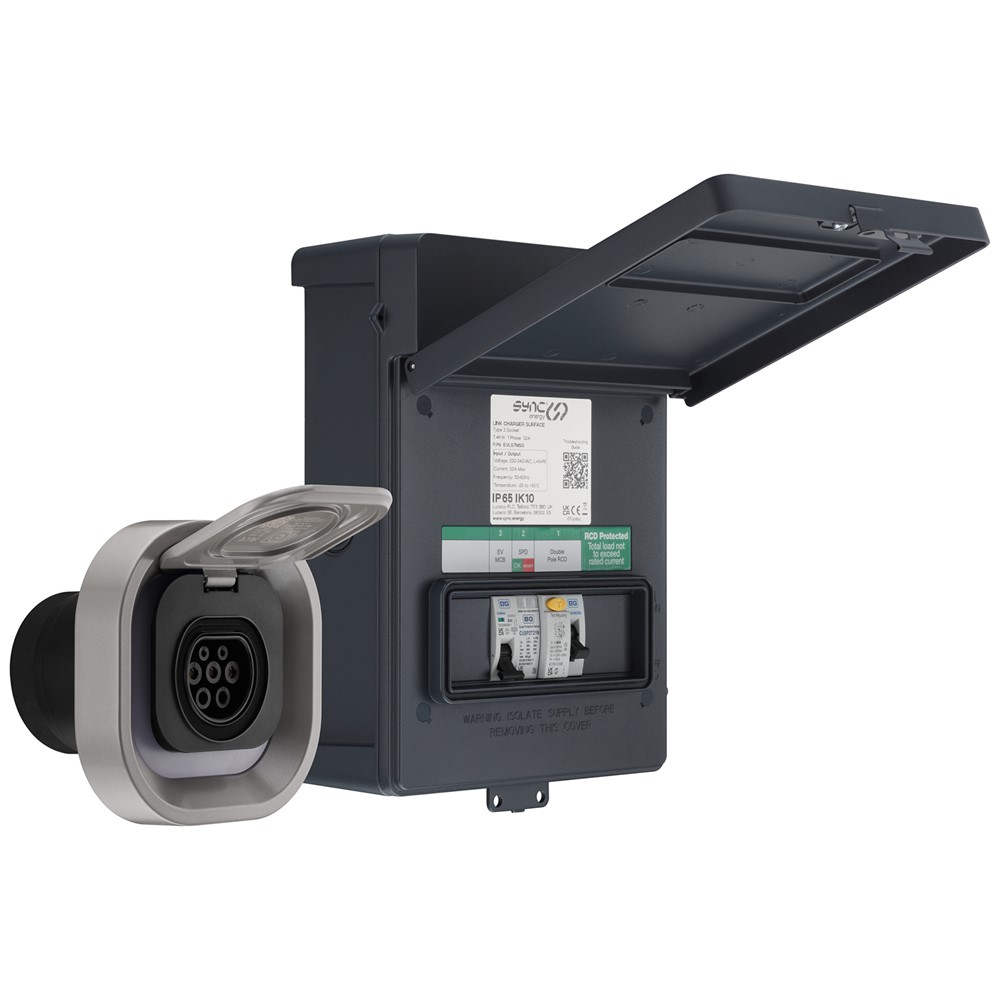

It features a unique two-part design with a separate metal control box and a slimline wall socket that sits just 37mm deep, providing a clean look with no visible external wiring.

Key Specifications & Features
Charging Performance: Delivers dynamic charging up to 7.4kW (32A) and is compatible with all Type 2 electric vehicles.
Smart Connectivity: Includes Wi-Fi (2.4GHz) and LAN (Ethernet) connectivity as standard, supporting OCPP 1.6J for app-based management via the Sync Energy App.
Energy Management:
Auto Solar Charging: Can be configured to use surplus energy from solar panels.
Tariff Sense: Integrates with UK energy tariffs to help schedule charging during off-peak, lower-cost periods.
Safety & Protection: Built-in PEN fault protection (no earth rod required), Type 2 Surge Protection (SPD), 40A Type A RCD, and 40A B-curve MCB.
Durability: Rated IP65 for weather resistance and IK10 for impact resistance.

Installation Highlights
The charger is designed for both new builds and retrofits. Its separate control box can be mounted up to 50m away from the charging socket, which simplifies internal wiring and keeps the exterior wall uncluttered. A CT clamp for dynamic load management is included in the box.
